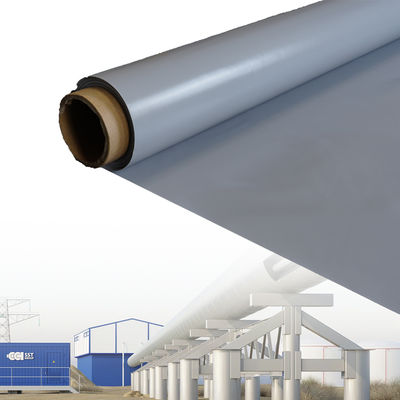

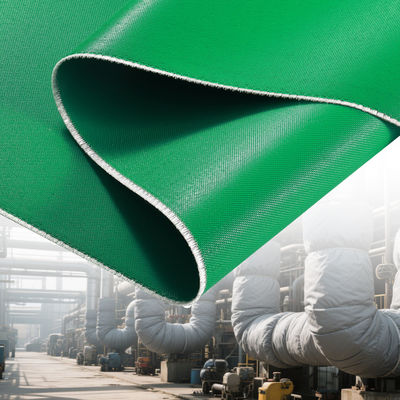

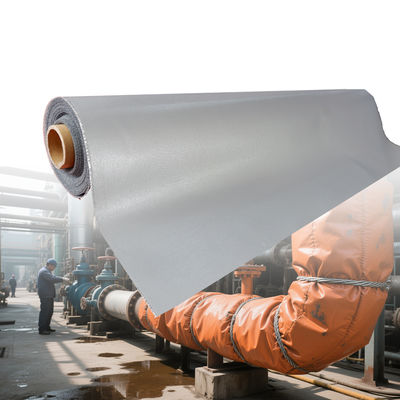

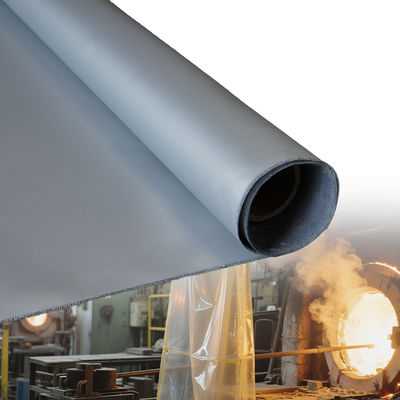

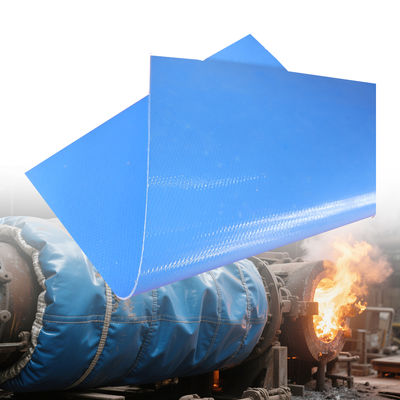

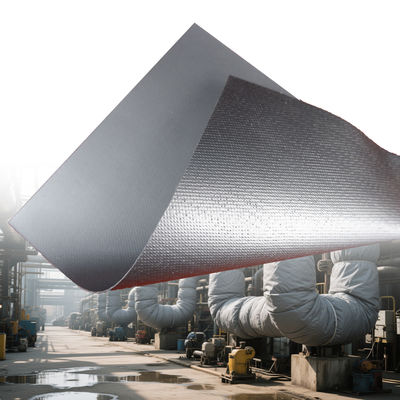

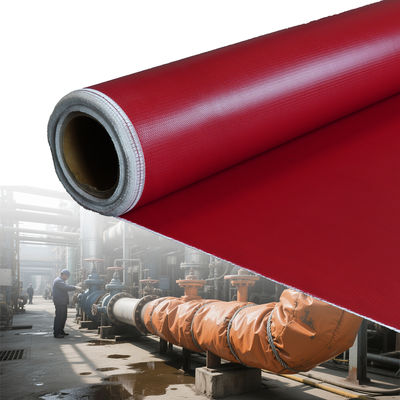

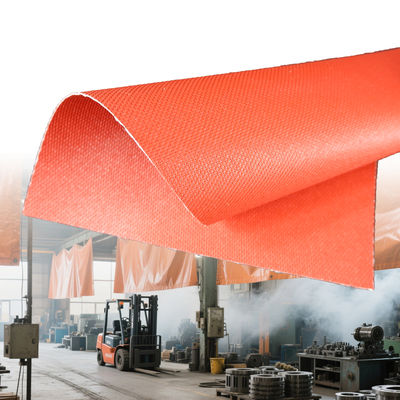

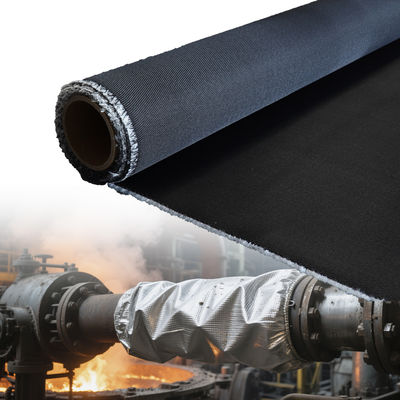

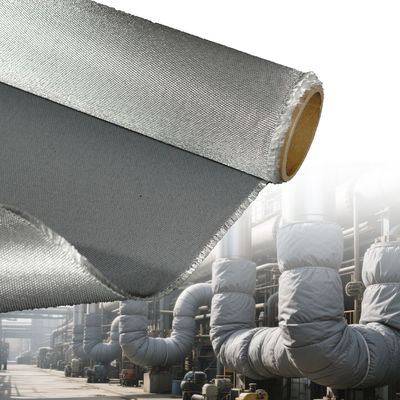

Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width

  • Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width
  • Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width
  • Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width
  • Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width
  • Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width
  • Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width
  • Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width
  • Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width
  • Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width
  • Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width
  • Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width
Luogo di origine Cina
Marca SUNTEX
Numero di modello GF200P-SI243-1053
Quantità di ordine minimo 20 rotoli
Imballaggi particolari Ogni rotolo in cartone, più cartoni in pallet
Tempi di consegna 5-20 giorni
Termini di pagamento T/t; L/C, PayPal ...
Capacità di alimentazione 500000sqm/month

Contattatemi per campioni e buoni.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Resistenza alla temperatura -50 grado di C a 500 gradi di C Peso 400 g/mq
Spessore 0.3 mm Rivestimento Gomma silicone
Larghezza 1 / 1,2/1,5 metri Contenuto dell'alcali alcali libero
Colore Grigio Lungo rotolo 50 m / 100 m
Evidenziare

0.3 mm Thickness Silicone Coated Fiberglass Fabric

,

400 g/sqm Weight Silicone Fiberglass Cloth

,

1 / 1.2 / 1.5 meter Width Welding Blanket Material
Lasciate un messaggio
Descrizione di prodotto

Grey Color Double Sided Silicone Coated Glass Fabric Insulation , Fire Retardant Curtain Fabric



Product Description



Silicone coated fiberglass fabrics

    Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -500C to +5500C. It is also anti-corrosive, weatherproof, corrosion resistance, water repellent,anti-aging, good chemical resistance to acids and lye, good mechanical properties.



    Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors, and widths for different applications.



Main applications:

1.Shipping, power generation, aerospace, marine
2.Foundry splash protection, welding defenders, motor vehicle industry

3.Insulation jackets, mattress, and pad

4.Fabric expansion joints

5.Fabric ductwork connector

6.Fire doors & Fire curtains

7.Welding/fire blankets

8.Other fire control systems



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1*2 ECG 75 1/2
Weft EC9 68 1*2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. SI244-1017
Coating Silicone rubber 2 sides
Weight 590 ± 25 g/m2 17.4 ± 0.74 oz/yd2 ASTM D3776-96
Thickness 0.45± 0.02 mm 0.018 ± 0.0007 inch ASTM D1777-96
Color Red
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)



Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width 0Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width 1Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width 2Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width 3

Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width 4

Product Application

Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width 5

Packaging & Shipping

Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width 6

Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width 7



Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width 8

Exhibition & Example

Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width 9

Contact Us

Durable Silicone Coated Fiberglass Fabric with 0.3 mm Thickness 400 g/sqm Weight and 1 / 1.2 / 1.5 meter Width 10
