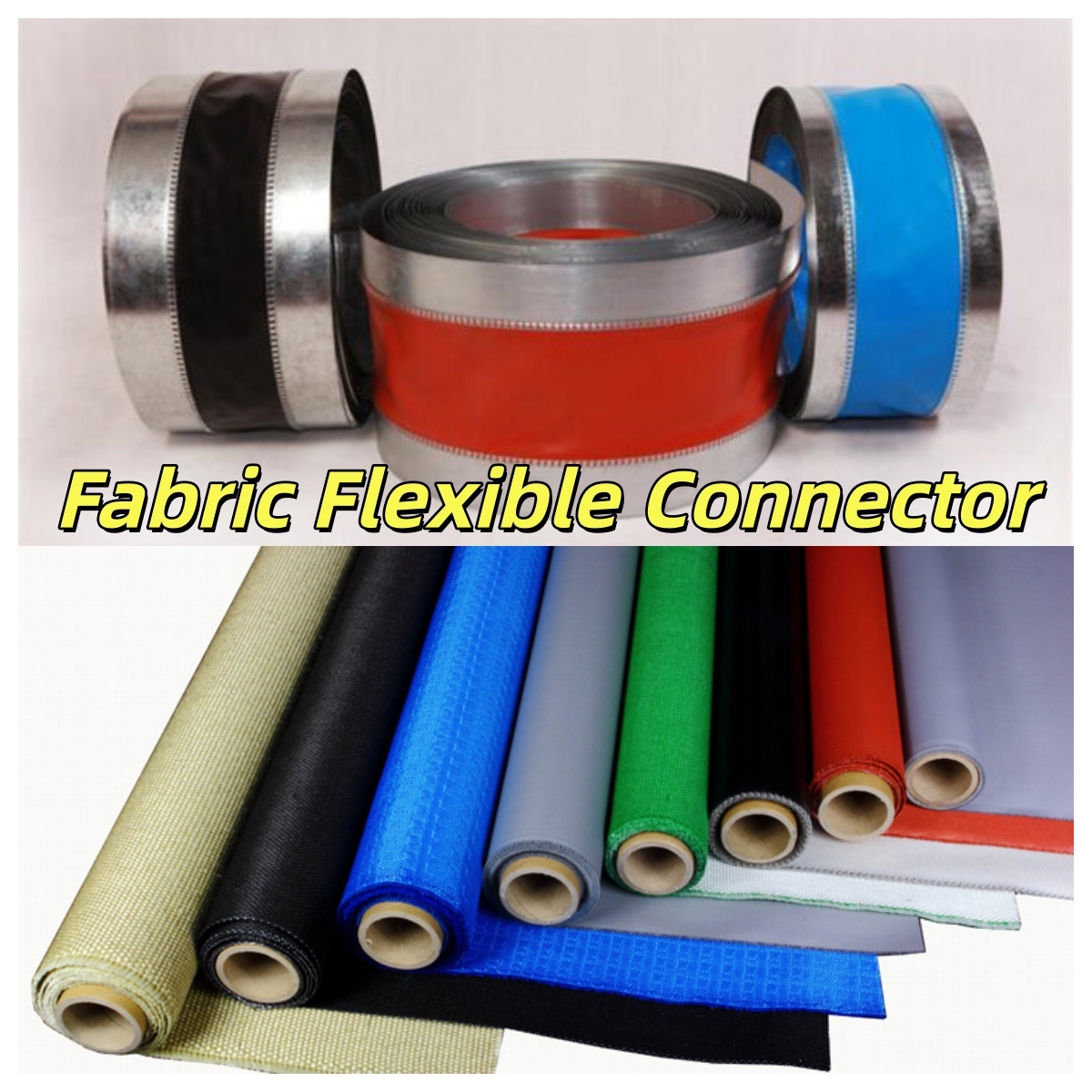

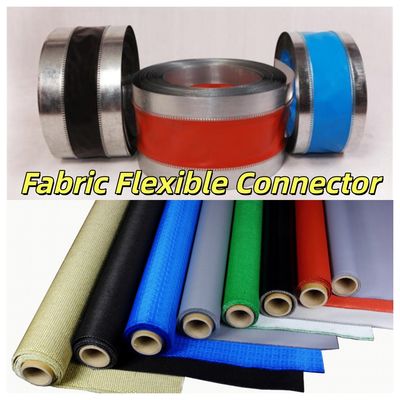

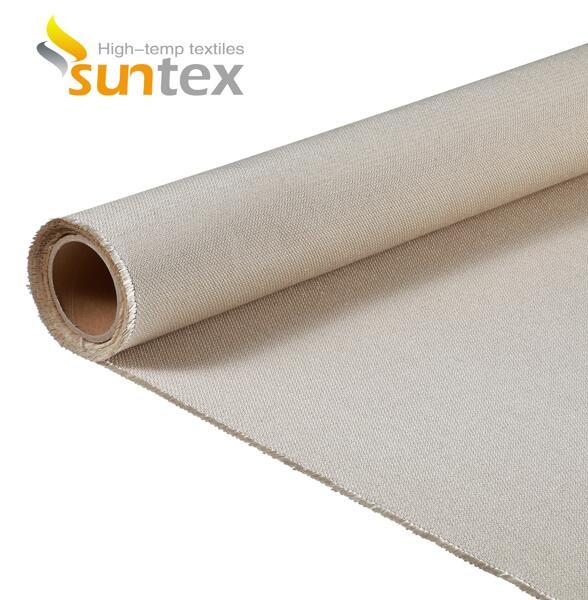

Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors

  • Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors
  • Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors
  • Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors
  • Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors
  • Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors
  • Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors
  • Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors
  • Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors
  • Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors
Luogo di origine Cina
Marca SUNTEX
Numero di modello GF430P-PU213-2004
Quantità di ordine minimo 20 rotoli
Imballaggi particolari Ogni rotolo in cartone, più cartoni in pallet
Tempi di consegna 5-20 giorni
Termini di pagamento T/T; L/C, Paypal…
Capacità di alimentazione 500000sqm/month

Contattatemi per campioni e buoni.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Il peso/peso per totale del peso specifico dello sqm/quadrato/pesa il peso nominale tessuto della vetroresina di 13,5 oz/sq.y Larghezza standard 1000mm 1520mm
Spessore standard 0.017inch Colore Grigio argento
Modello 4H satinato Termoresistenza ricoprente 350℉
Termoresistenza di base del tessuto 1000℉ Rivestimento Poliuretano 2 lati
Lasciate un messaggio
Descrizione di prodotto

0 Fire Proof PU Coated Fiberglass Fabric For Flexible Expansion joint 0.41mm 460g Fabric Duct Connector



Introduce



GF430P-PU213-2004 is a medium weight fiberglass fabric coated with a specially formulated polyurethane polymer. GF430P-PU213-2004 is the fabric applied for textile air distribution system. The other applications for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems.



Advantage



1. M0 certified fire resistance.

2. End users can choose the favority face.

3. Easy to be applied, sewn and fabricated.

4.Good/Well/Excellent/Awesome abrasion resistance property.

5. Good/Well/Excellent/Awesome tensile strength.

6. Nominal Thickness/Thickness, weight/unit weight, weave/pattern, all can be customized base on your application/use method.



Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors 0



Data



Total weight 13.5 oz/y2
Standard Thickness 0.017 inch
Standard width 1000mm 1520mm 1550mm
Coating Polyurethane

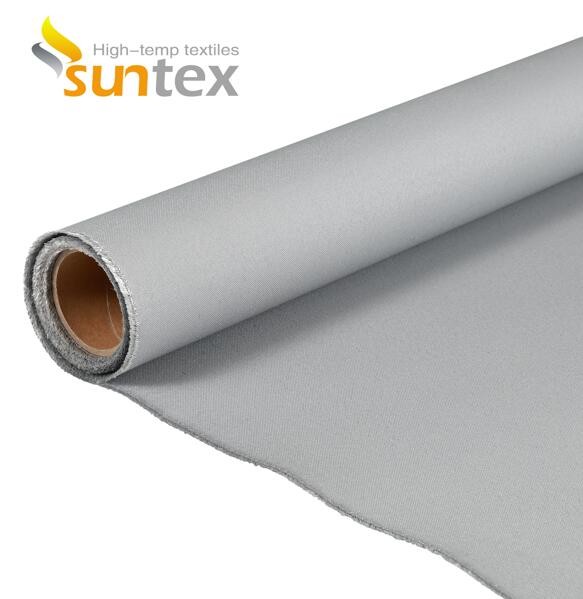

Colour of surface Silver Grey
Fire resistance M0
Coating temperature resistance / Coating working temperature PU coating 180 ℃
Basic fabric working temperature / Basic temperature resistance Basic fabric 550 ℃
Weave/Pattern Satin
Fiberglass E-Glass


Applications

Fire curtain

Welding blanket

Compensator

Removable thermal insulation jacket

Thermal insulation pad

Fabric duct



Related Products

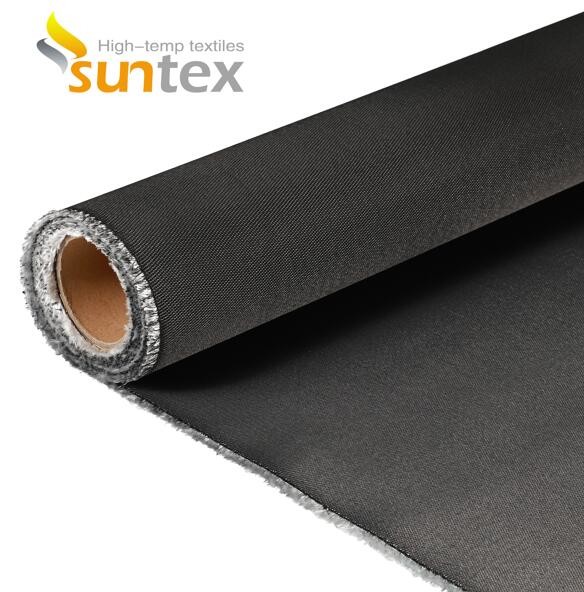

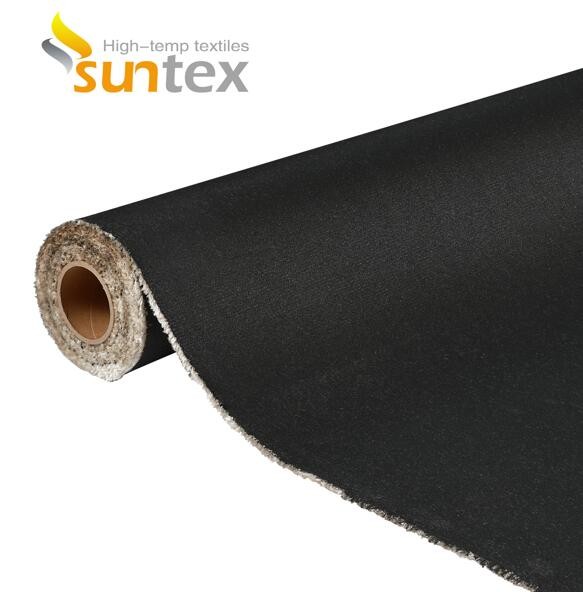

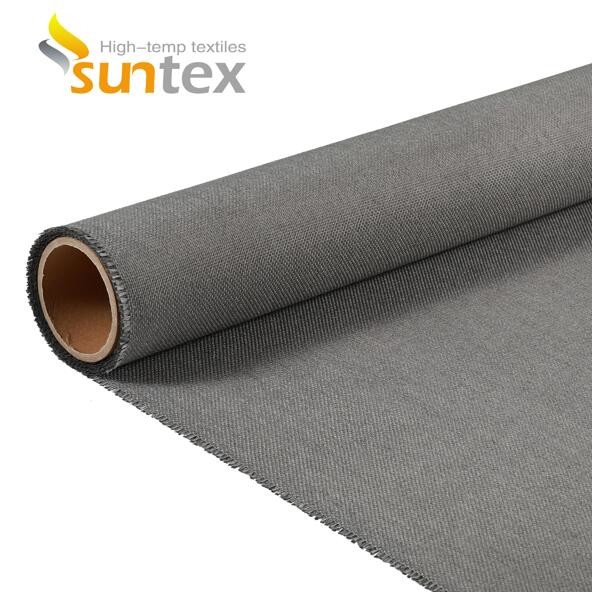

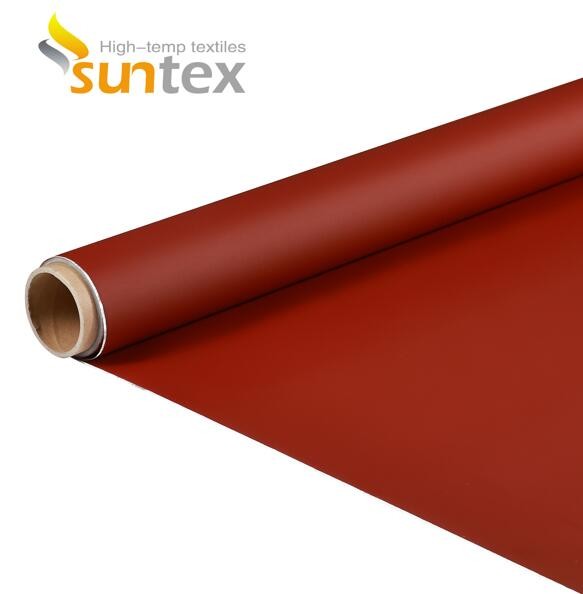

Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF200P-PU210-2001 220 6.5 0.21 0.0082 White 2 sides
GF430P-PU213-2004 460 13.5 0.41 0.0161 Silver grey 2 sides
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey 2 sides
GF430P-PU21A-2006 460 13.5 0.41 0.0161 Blue/Black 2 sides
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White 2 sides
GF430P-PU223-2010 490 14.5 0.45 0.0177 Blue/Black 2 sides
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey 2 sides
TGF580-PU113-2019 620 18.3 0.77 0.0303 Silver grey 1 side
GF800C-PU223-2023 880 26 0.9 0.0354 Silver grey 2 sides

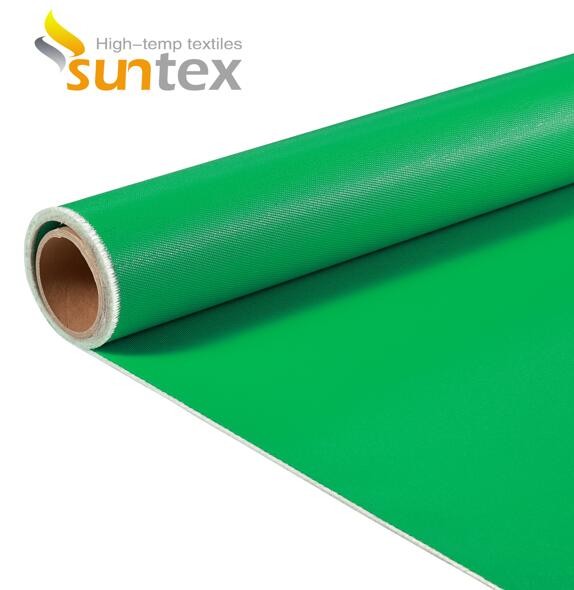

TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green 1 side
GF660S-PU213-2036 710 20.9 0.7 0.0276 Silver grey 2 sides
GF660S—PU113-2040 790 23 0.70 0.027 Grey 1 side
SL600-PU113-2044 630 18.6 0.7 0.0276 Silver grey 1 side
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 Silver grey 2 sides



Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors 1Silicone Rubber Coated Fiberglass Fabric For Fabric Flexible Connectors 2
