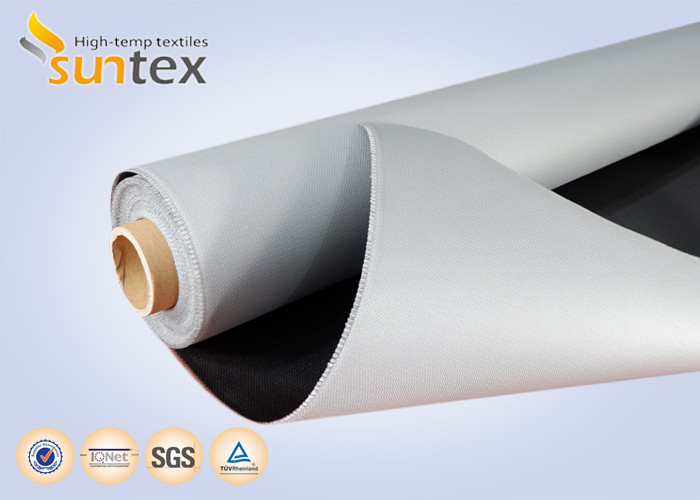

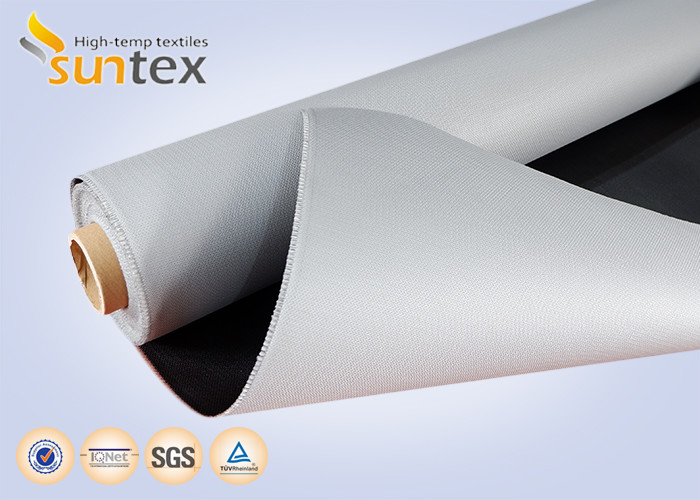

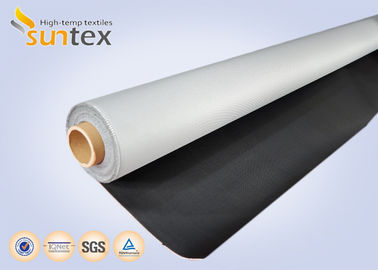

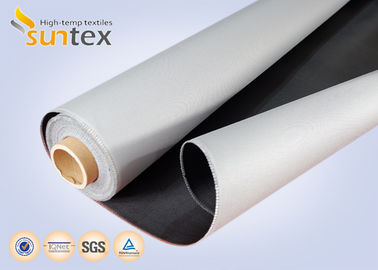

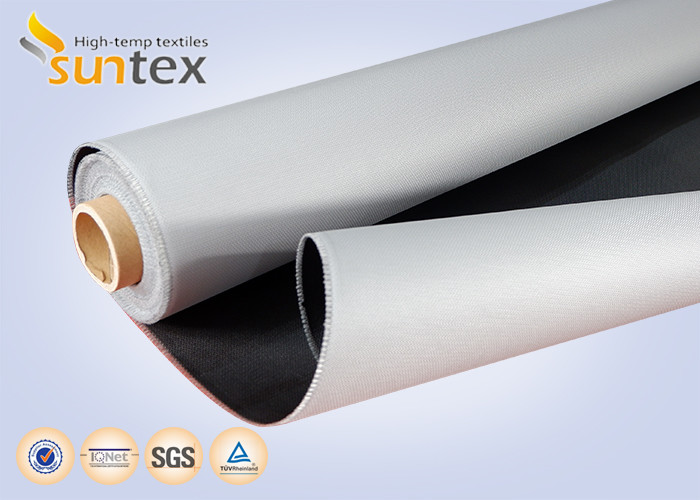

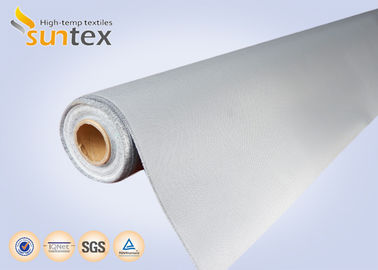

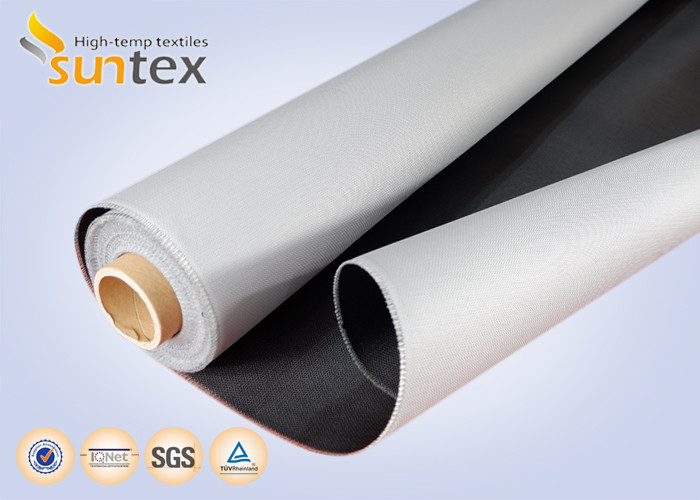

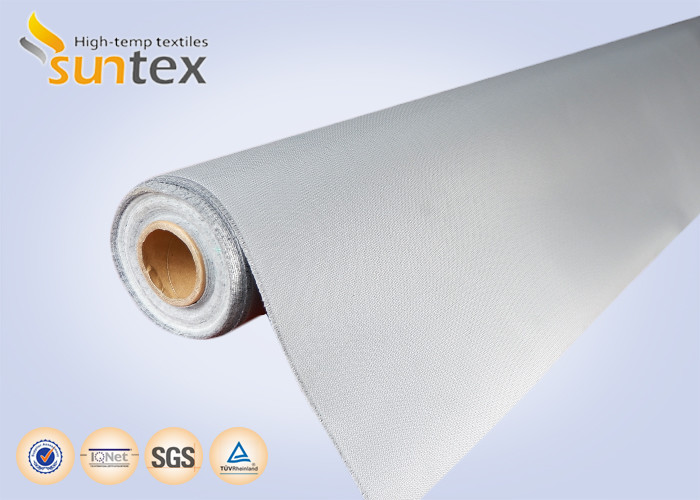

M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection

  • M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection
  • M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection
  • M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection
  • M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection
  • M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection
  • M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection
Luogo di origine Cina
Marca SUNTEX
Numero di modello GF430P-PU21A-2006
Quantità di ordine minimo 500 metri
Prezzo FOB Shanghai 2.3-5.6 $/sqm
Imballaggi particolari Ogni rotolo nel cartone, diversi cartoni sui pallet
Tempi di consegna 5-15 giorni lavorativi
Termini di pagamento T/T, L/C, D/P, Western Union
Capacità di alimentazione 50000 metri al mese

Contattatemi per campioni e buoni.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Peso 460 g/mq Spessore 0,41 mm
Colore Blu / nero Tessitura del nastro Twill Weave
Larghezza 1 m/1,3 m/1,5 m/1,52 m/1,55 m rivestimento Poliuretano
Evidenziare

M0 certified fire resistant PU fiberglass cloth

,

460gsm heat protection fiberglass fabric

,

PU coated fiberglass fabric with warranty
Lasciate un messaggio
Descrizione di prodotto

Suntex provides specially formulated polyurethane polymer coated fiberglass fabrics which can withstand temperature up to 1800C for short bursts. It has very good abrasion resistance and good resistance to oils and solvents.

Suntex provides one-sided/double-sided polyurethane coated fiberglass fabrics with many colors and widths. It has excellent fire resistance and good mechanical properties for make-up.



Main applications

-Fabric air distribution ducts.

-Fabric ductwork connector.

-Fire doors & Fire curtains.

-Welding/fir blankets.

-Other fire and smoke control systems.



BASE FABRIC Base fabric style No. GF430P
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. PU21A-2006
Coating Fire retardant, high performance, blue/black polyurethane on both sides
Weight 460 ± 20 g/m2 13.5 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.41 ± 0.03 mm 0.017 ± 0.0012 inch ASTM D1777-96
Color Blue/Black
Fire resistance M0 approvals NF92507
Temp resistance

Glass fabric up to 5500C (10000F)

Polyurethane coating up to 1800C (3560F

M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 0M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 1M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 2M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 3

Style NO. Weight Thickness Color Coating
(g/m2) (oz/yd2) (mm) (inch)
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey Double side
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White Double side
GF660S—PU113-2040 790 23 0.70 0.027 Grey Single side
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey Double side
TGF580—PU113-2019 620 18 0.75 0.0295 Grey Single side
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green Single side

Related Style

M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 4M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 5M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 6M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 7M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 8M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 9M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 10M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 11M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 12M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 13M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 14M0 Certified Fire Resistant PU Fiberglass Cloth 460gsm for Heat Protection 15

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.



3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you



4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.



5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.



6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
